“Stay exhaustion” is a peculiarity that can happen in titanium combinations when held under pressure, for example, in a fly motor’s fan circle during departure. This exceptional disappointment mode can start infinitesimal breaks that radically diminish a part’s lifetime.
The most generally utilized titanium composite, Ti-6Al-4V, was not accepted to show weakness before the 2017 Air France Flight 066 episode, in which an Airbus on the way from Paris to Los Angeles endured fan circle disappointment over Greenland that constrained a crisis arrival. The examination of that episode and a few later worries incited the Government Flying Organization and European Association Flight Wellbeing Office to facilitate work across the aeronautic trade to determine the underlying drivers of flight weakness.
Most experts agree that metals distort primarily through separation slip—the formation of line abandons in the hidden precious stone cross section.Scientists believe that stay weakness can begin when slip is restricted to specific groups rather than occurring more uniformly in three aspects.The presence of nanometer-scale intermetallic Ti3Al hastens band development, especially when handling conditions consider their long-range requesting.
“This work provides a fresh, mesoscale view of the intermittent deformation events, small “bursts” of plastic slip underpinning dwell fatigue, and how the frequency and size of those events rely on oxygen content and alloying,”
LLNL physicist Joel Bernier
When this banding behavior occurs across a touching gathering of “delicately” situated grains, scientists refer to it as a “macrozone.”The resultant misshapening fixation, where the band meets a “hard” grain situated outside the macrozone, prompts a pressure focus, starting the breaking system.
To further complicate matters, disengagement slip occurs intermittently in explosions or “torrential slides,” similar to how minor slippage can trigger more severe seismic tremors.The magnitude and recurrence of these slip torrential slides have a significant impact on the onset of stay fatigue.
In a new report by a worldwide group, including momentum and previous Lawrence Livermore National Laboratory (LLNL) researchers, scientists utilized synchrotron X-beams to follow discrete slip and torrential slide occasions in titanium held under load at room temperature.

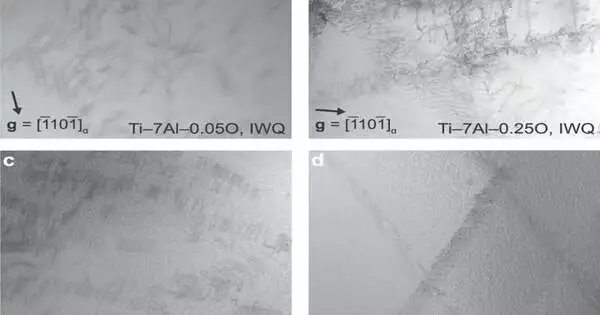

A group from Supreme School London gave examples of extraordinarily prearranged Ti-7Al, a combination addressing a substitute for the essential stage in Ti-6Al-4V. The populations of two-point imperfection types were balanced across the examples: interstitial oxygen content and how much arranged Ti3Al encourages.
The review, published in Nature Correspondences, demonstrates that torrential slides are more serious in terms of related pressure size where the Ti3Al displays are requesting.Conversely, expanding how much interstitial oxygen is available seems to lessen the seriousness, advancing more incessant, more modest torrential slides.
“This work provides a novel, mesoscale perspective on the irregular deformity events (near-zero “explodes” of plastic slip) that support stay weakness, explicitly demonstrating how the recurrence and extent of those events are dependent on oxygen content and alloying,” said co-creator and LLNL physicist Joel Bernier.”This information can aid in directing handling to avoid microstructures that harm protection from enduring weakness.”
Bernier executed high-energy X-beam diffraction microscopy estimations at the Cornell High Energy Synchrotron Source (CHESS) and played out the information decrease utilizing the LLNL-created HEXRD programming library. The group evaluated the recurrence and size of pressure blasts coming about because of slip torrential slides and found that the two kinds of point surrenders pronouncedly affected slip happening on the gem cross section’s basal planes.
Scientists discovered that after the underlying yielding, a conditioning known to be a precursor to harm collection and disappointment in examples of stay weakness, this distortion system becomes easier to enact.Among the key discoveries: increased oxygen interstitial convergence reduced the normal magnitude of basal slip torrential slides by advancing more continuous lower-extent occasions.
Interestingly, increasing the size of the requested Ti2Al by maturing the material at a higher temperature increased the frequency and extent of slip torrential slides, increasing the likelihood of break inception. As per the group, these discoveries can assist with advancing the handling of titanium combinations for protection from fatigue.
More information: Felicity F. Worsnop et al, The influence of alloying on slip intermittency and the implications for dwell fatigue in titanium, Nature Communications (2022). DOI: 10.1038/s41467-022-33437-z
Journal information: Nature Communications
