An exploration group driven by the Technical University of Munich (TUM) has prevailed without precedent in creating a sub-atomic electric engine utilizing the DNA origami strategy. The minuscule machine made of hereditary material self-gathers and converts electrical energy into dynamic energy. The new nanomotors can be turned here and there, and the analysts have some control over the revolution speed and rotational heading.
Be it in our vehicles, drills or programmed espresso processors, engines assist us with performing work in our regular day-to-day existences to achieve a wide assortment of errands. On a much more limited scale, normal sub-atomic engines perform crucial errands in our bodies. For example, an engine protein known as ATP synthase produces the particle adenosine triphosphate (ATP), which our body utilizes for transient capacity and movement of energy.
While regular sub-atomic engines are fundamental, it has been very hard to reproduce engines on this scale with mechanical properties generally like those of normal sub-atomic engines like ATP synthase. An examination group has now developed a working nanoscale sub-atomic rotating engine involving the DNA origami strategy and distributed their outcomes in Nature. The group was led by Hendrik Dietz, Professor of Biomolecular Nanotechnology at TUM; Friedrich Simmel, Professor of Physics of Synthetic Biological Systems at TUM; and Ramin Golestanian, Chief at the Max Planck Institute for Dynamics and Self-Organization.
A self-gathering nanomotor
The original atomic engine comprises DNA—hereditary material. The scientists utilized the DNA origami strategy to gather the engine from DNA atoms. This strategy was concocted by Paul Rothemund in 2006 and was later additionally evolved by the examination group at TUM. A few long single strands of DNA serve as a foundation for extra DNA strands to join as partners.The DNA groupings are chosen so that the connected strands overlap to make the ideal designs.
“We’ve been propelling this strategy for manufacture for a long time and can now foster exceptionally exact and complex items, for example, sub-atomic switches or empty bodies that can trap infections. In the event that you put the DNA strands with the right groupings in arrangement, the items self-gather, “says Dietz.
The new nanomotor made of DNA material consists of three parts: the base, stage, and rotor arm. The base is roughly 40 nanometers high and is fixed to a glass plate in an arrangement by means of compound bonds on the glass plate. A rotor arm of up to 500 nanometers long is mounted on the base with the goal that it can pivot. Another part that is critical for the engine to fill in as planned is a stage that lies between the base and the rotor arm. This stage contains snags that impact the development of the rotor arm. To pass the obstructions and pivot, the rotor arm should twist up somewhat, like a wrench.

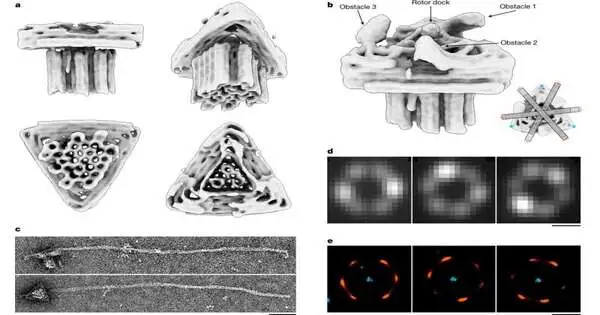

Underlying investigation of the DNA origami engine Various viewpoints on a 3D electron thickness guide of the not set in stone via single-molecule cryo-EM (see also Extended Data Fig. 4 and in the Electron Microscopy Data Bank (EMDB) under code EMD-14358).b, Motor block cryo-EM map detail portrayed at various thickness limits at which the three hindrances and the rotor dock can be perceived. Inset, schematic appearance of the six favored staying locales of the rotor arm. c, Negative-staining TEM images of an engine variant with a long rotor arm joinedScale bar, 50 nm. d, Examples of single-molecule fluorescence images.Scale bar, 500 nm. The pictures show the standard deviation of the mean force per pixel processed over every one of the casings from recorded TIRF recordings. e, DNA-PAINT pictures showing rotor arm tip positions in comparison with the triangle stage. Scale bar, 500 nm.
Designated development through AC voltage
Without energy supply, the rotor arms of the engines move haphazardly in one direction or the other, driven by arbitrary impacts with atoms from the encompassing dissolvable. Notwithstanding, when AC voltage is applied through two cathodes, the rotor arms pivot in a designated and consistent way in one bearing.
“The new engine has uncommon mechanical abilities: It can accomplish forces in the scope of 10 piconewtons per nanometer. Furthermore, it can produce more energy each second than what’s delivered when two ATP atoms are parted, “makes sense” to Ramin Golestanian, who drove the hypothetical investigation of the system.
The designated development of the engines results from a superposition of the fluctuating electrical powers with the powers experienced by the rotor arm because of the wrench snags. The hidden component understands a supposed “blazing Brownian ratchet.” The scientists have some control over the speed and heading of the revolution by means of the bearing of the electric field and, furthermore, through the recurrence and sufficiency of the AC voltage.
“The new engine could likewise have specialized applications later on.” In the event that we foster the engine further, we might actually involve it in the future to drive client-characterized compound responses, propelled by how ATP synthase makes ATP driven by turn. Then, for instance, surfaces could be thickly covered with such engines. Then, at that point, you would add the beginning materials, apply a little AC voltage, and the engines would produce the ideal synthetic compound, says Dietz.
More information: Anna-Katharina Pumm et al, A DNA origami rotary ratchet motor, Nature (2022). DOI: 10.1038/s41586-022-04910-y
