Printing objects from plastic unequivocally, rapidly, and cheaply is the objective of numerous 3D printing processes. Nonetheless, speed and high goal stay a mechanical test. An examination group from the Karlsruhe Organization of Innovation (Unit), Heidelberg College, and the Queensland College of Innovation (QUT) has made considerable progress toward accomplishing this objective. It fostered a laser printing process that can print micrometer-sized parts in a matter of moments. The worldwide group distributed the work in Nature Photonics.
Stereolithography 3D printing is as of now one of the most famous added substance producing processes for plastics, both for private and modern applications. In stereolithography, the layers of a 3D item are extended individually into a compartment loaded up with sap. The sap is relieved by UV light. Be that as it may, past stereolithography techniques are slow and have too low a goal. Light-sheet 3D printing, which is utilized by the Unit specialists, is a quick and high-goal elective.
“The return time for the resin we utilized was less than 100 microseconds, allowing for fast printing speeds. With more sensitive resins, we could potentially replace lasers in our 3D printer with LEDs. Finally, we hope to be able to print centimeter-sized 3D structures while keeping micrometer precision and high printing rates.”
Vincent Hahn from KIT’s Institute of Applied Physics (APH).
3D printing with two tones in two phases

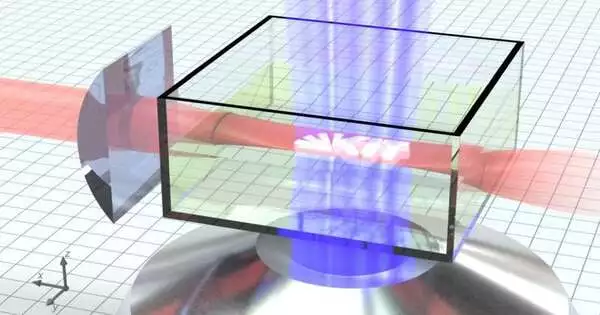

In light-sheet 3D printing, blue light is projected into a compartment loaded up with a fluid pitch. The blue light pre-initiates the sap. In a subsequent stage, a red laser shaft gives the extra energy expected to fix the sap. Notwithstanding, 3D printing can print rapidly tars that rapidly get back from their pre-actuated state to their unique state. Really at that time could the following layer at any point be printed.
Subsequently, the return time directs the holding up time between two progressive layers and consequently the printing speed. “For the tar we utilized, the return time was under 100 microseconds, which takes into account high printing speeds,” says first creator Vincent Hahn from Pack’s Establishment of Applied Physical science (APH).
Micrometer-sized structures in only the squint of an eye
To exploit this new gum, the scientists fabricated an exceptional 3D printer. In this printer, blue laser diodes are utilized to extend pictures into the fluid pitch utilizing a high-goal show with a high casing rate. The red laser is framed into a slim “light sheet” pillar and crosses the blue shaft upward in the sap.
With this game plan, the group had the option to 3D print micrometer-sized parts in a couple hundred milliseconds, for example quickly. In any case, it shouldn’t stop there: “With additional touchy saps, we actually might involve LEDs rather than lasers in our 3D printer,” says Teacher Martin Wegener of APH. “At last, we need to print 3D designs that are centimeters in size, while keeping up with micrometer goal and high printing speeds.”
More information: Vincent Hahn et al, Light-sheet 3D microprinting via two-colour two-step absorption, Nature Photonics (2022). DOI: 10.1038/s41566-022-01081-0
Journal information: Nature Photonics
